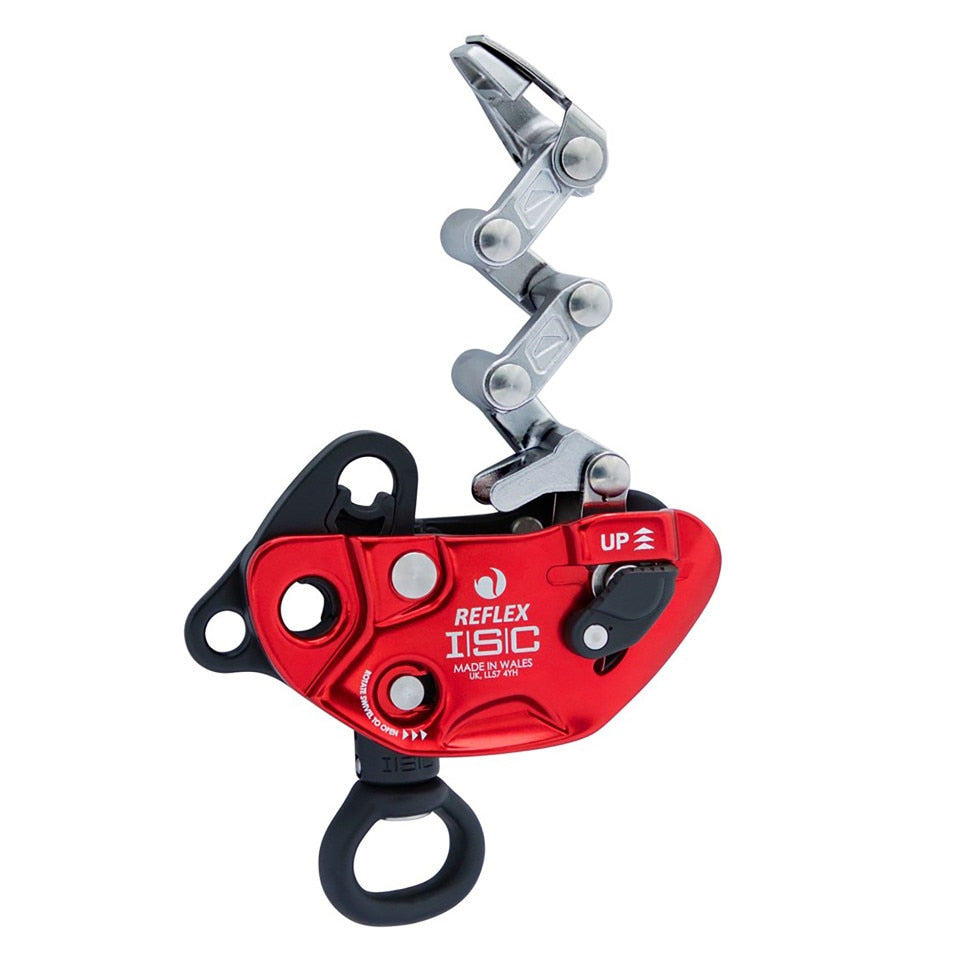

ISC REFLEX MH285 Mechanical Hitch

The REFLEX body is fitted with a safety-lock swing-frame and L-shaped links, which means that the rope can be inserted into the body and then helically wound around and into (rather than threaded through) each link. The top link is fitted with a latch which keeps the rope securely captivated, within the links during use.

• ISC Reflex Support Notes - 4/24/2026
• CE Certified to EN 12841, on EN 1891-A ø11-13mm Rope
• Removeable & Replaceable Swivel
• The REFLEX offers self-tending, low-friction ascent, with a choice of towing positions.
• Technical Information
• Rope diameter range (mm): 11-13mm EN1891 Type A Rope
• (WLL) Working Load Limit (kg): 50-200
• (WLL) Working Load Limit (lbs): 110-440
• (MBS) Minimum Breaking Strength - gate closed (kN): 12
• (MBS) Minimum Breaking Strength - gate closed (lbf): 2,698
• Serial numbering: As standard
• Body finish: Anodised
• Weight (grams): 567
• Weight (ounces): 20
