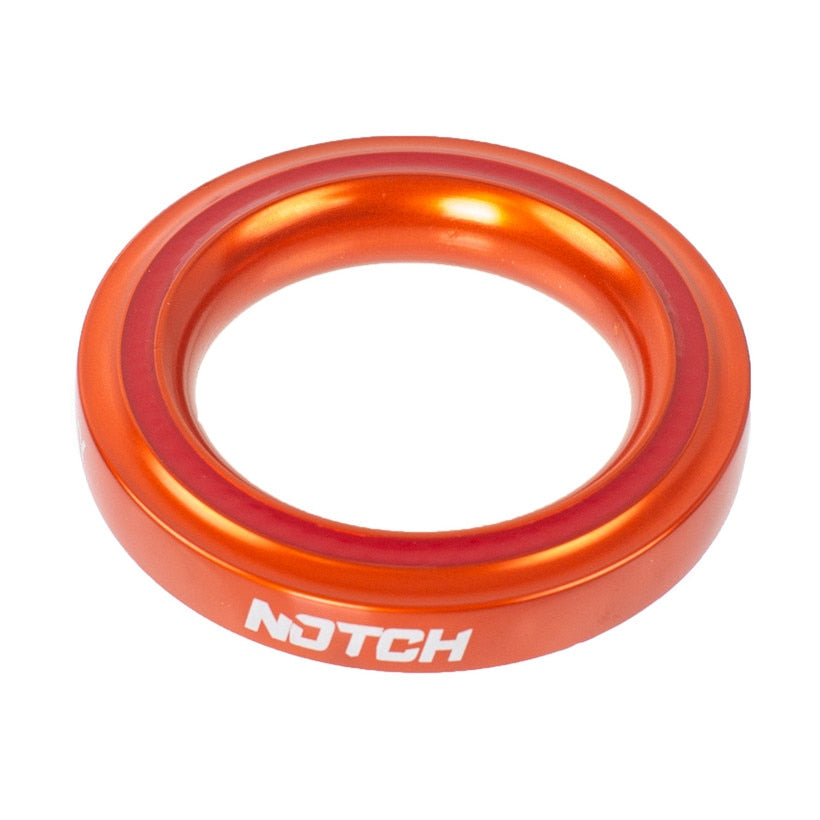

Notch Wear Safe Aluminum Friction Ring

The Aluminum Wear Safe/¢ Friction Rings have the industry's first wear indicator mark for increased safety and ease of inspection. Available in two sizes.

• Purpose driven 33% larger bend radius
• Industry first wear indicator mark for increased safety and ease of inspection
• Hot forged 7075 aluminum construction
• Compatible with rope style bridges
• 30kN MBS
• Available in two sizes
• Individually serialized
• SPECS
• Small Ring ( 28 x 54 mm)
• MBS: 30kN
• INSIDE DIAMETER: 28mm
• OUTSIDE DIAMETER: 54mm
• WEIGHT: 1.9oz (53g)
• COMPOSITION: Aluminum
• FINISH: Anodized
• Large Ring ( 48 x 74 mm)
• MBS:30kN
• INSIDE DIAMETER: 48mm
• OUTSIDE DIAMETER: 72mm
• WEIGHT: 2.8oz (79g)
• COMPOSITION: Aluminum
• FINISH: Anodized
• Warning. This product can expose you to chemicals including Nickel Hydroxide, which is known to the state of California to cause cancer. For more information, go to www.P65warnings.ca.gov.
