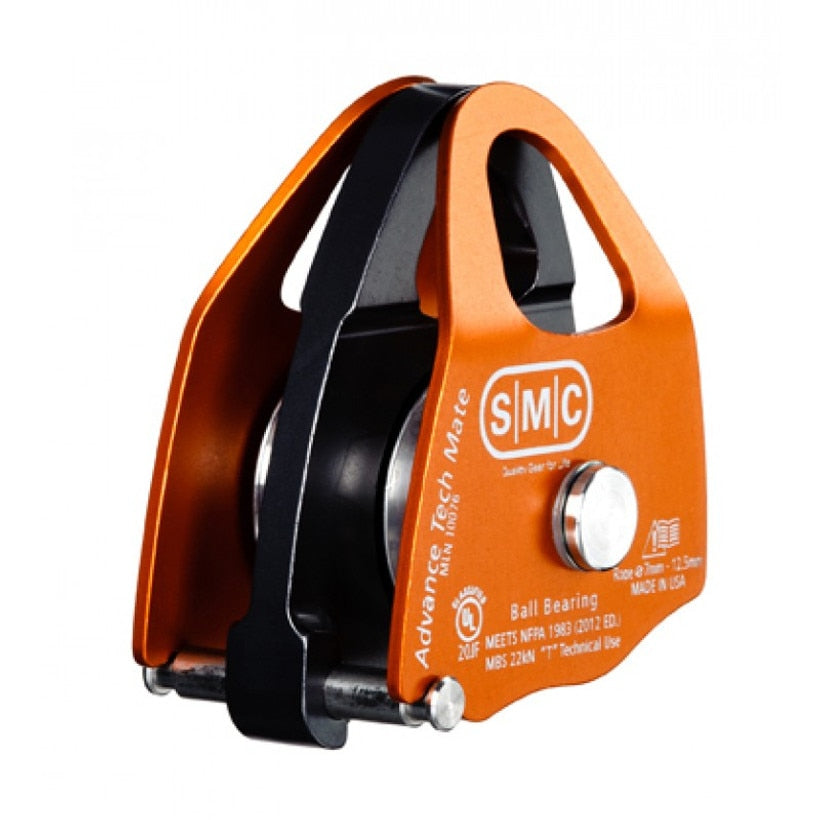

SMC Advance Tech Mate Pulley

The SMC Advance Tech Mate is a compact double pulley built for small mechanical-advantage haul systems. It is designed to pair with the SMC Advance Tech progress-capture pulley in a mini haul kit. Integrated stainless steel pins help retain the rope when a rigged system is packed, so the system can be pulled out and used immediately without re-threading.

• Model #: NFPA154801 (double pulley)
• 3-sigma MBS: 34 kN (7,644 lbf)
• Rope range: 7 mm to 12.5 mm
• Sheave: 1.37" aluminum with sealed ball bearings
• Axle: stainless steel
• Material: high quality anodized aluminum
• Dimensions: 2.97" x 2.40" x 1.81"
• Weight: 5.44 oz (154 g)
• NFPA 1983 certified
• Made in USA

Specifications from SMC (smcgear.com). Read the SMC Advance Tech pulley user instructions before use.
